GoogleEarthData Proxy For Cesium

Previous Next







The program has the ability to download all image and dem data from googleearth(Not GooleMap),so you don't need to prepare base data.You can focus on develop your cesium application.

If you have any data want to public,like tif or 3dtiles,the program provide a quick step to public them.



(the server can connect to more than 200 googleserver's ip,download in high speed more than googleearth itself)。



Remarks:the googleearthg's ip is configed in china,I don't know if it work in your contry, if not. contact me,I will help you to deal the problem.



the cesium code is In the "ces" dir,you can change by you want.



downloadlink:http://www.earthg.cn/suit/zip/EEDDownLoader.zip



more information mailto:wenwu20082001@gmail.com



1,Start Cesium With no LocalData

  1) Run EEDDataServer.exe

  2) Check the Button "use data from GoogleEarth"

  3) type the name you want to Bind Like 127.0.0.1:8081

  3) Click the Play Button

  4) Click "View In Browser"

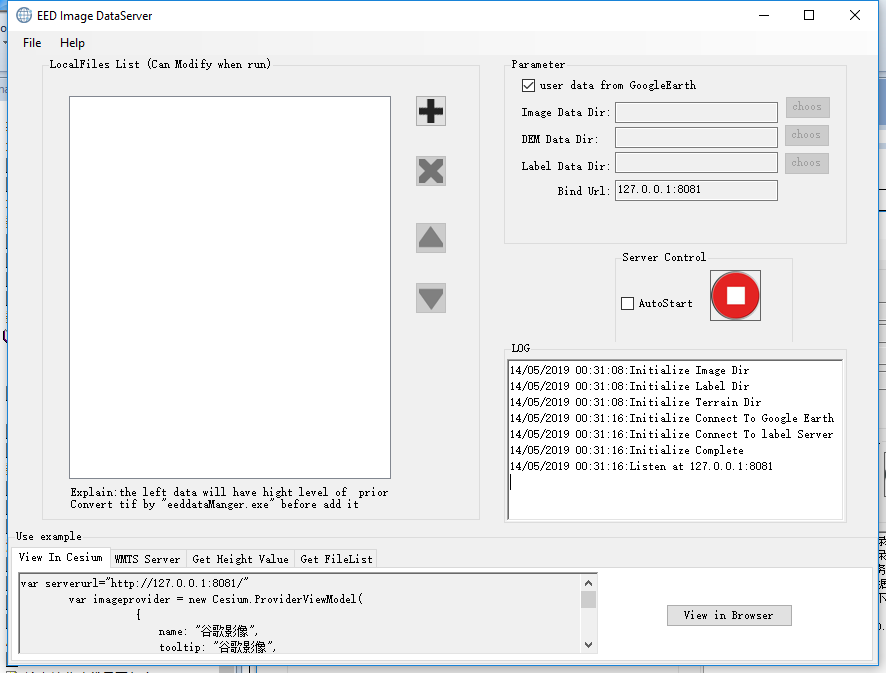

The Program View

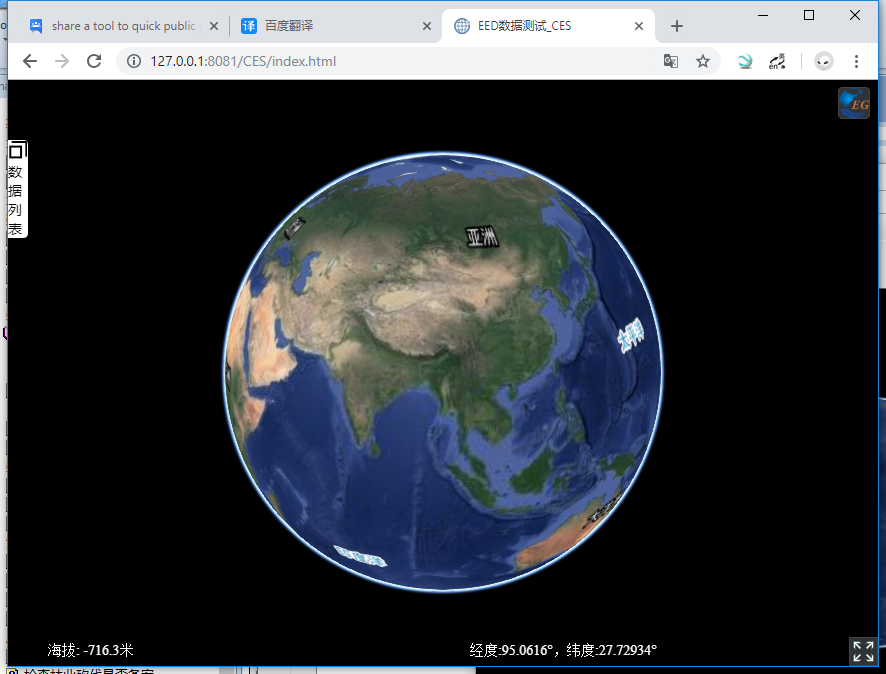

View In Browser





2,Load TIF Image And DEM



   1) Project all file to WGS84 with ArgGis or something you lick.



   2) Run EEDDataViewer.exe.

   3)locate to your file.

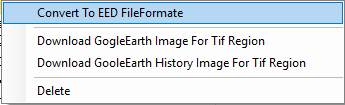

   4) Right Click on the tif file you want to add,Click "Convert To EED FileFormate"



    5)When all file have Converted,add them to Local File List in EEDDataServer by the add button.

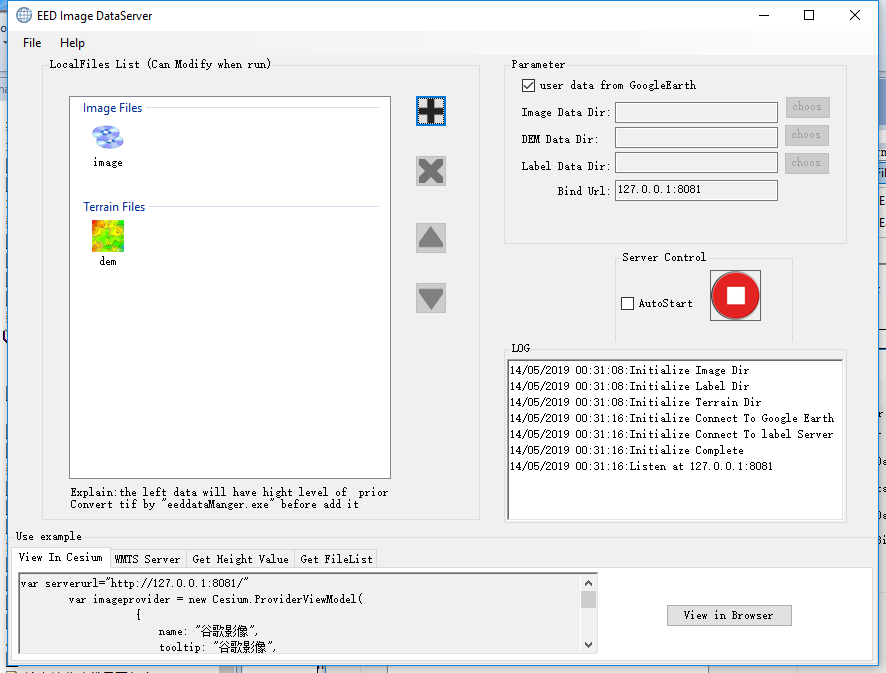

The Program View

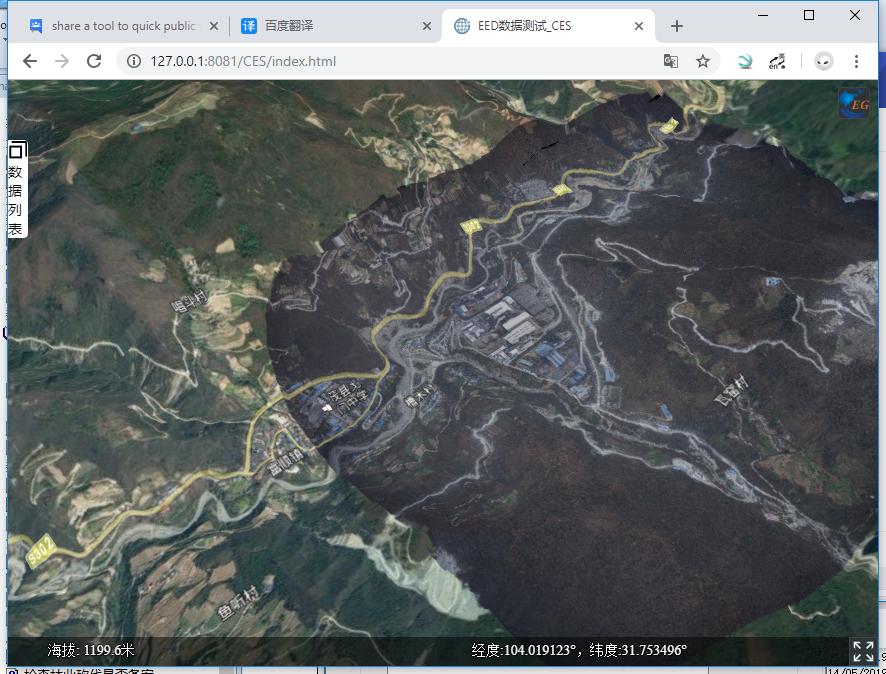

View In Browser



3 public 3dtiles

    1)add the files to LocalFile List by add button.(the default fileformate is tif in the openfiledialoge,make sure switch to 3dtiles )

    2)refresh your Browser

    3)If the 3dtiles file's height is not suit for the GoogleEarth's height,Right Click On the 3dtiles files,Choose "Set HeightOffset",refresh browser when Complete。

Reamrk:

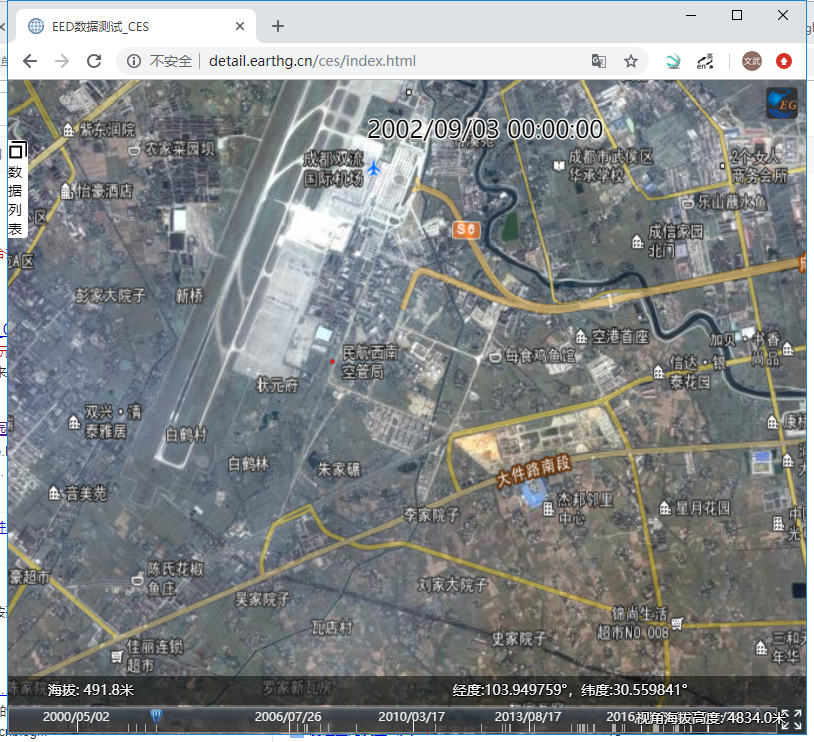

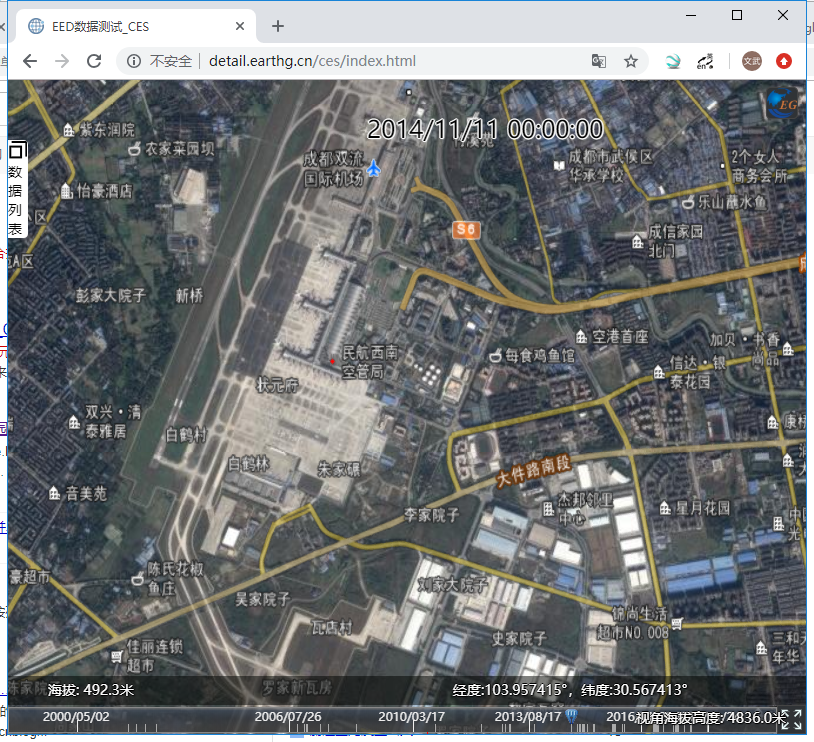

   the program can hand different time in one area,when you view to a dataregion have more than one time data,there will show a timebar,like bellow:



Time1

Time2



the demo url is  http://detail.earthg.cn/ces/index.html

the demo area have multi time data near E103.955 N30.551
